pocketpy/docs/features/debugging.md

icon	title	order
dot	Debugging	80

Install VSCode Extension

To debug a pocketpy program, you need to install our VSCode extension first:

https://marketplace.visualstudio.com/items?itemName=pocketpy.pocketpy

!!! The VSCode extension requires pocketpy version >= 2.1.1 !!!

Create a launch.json file

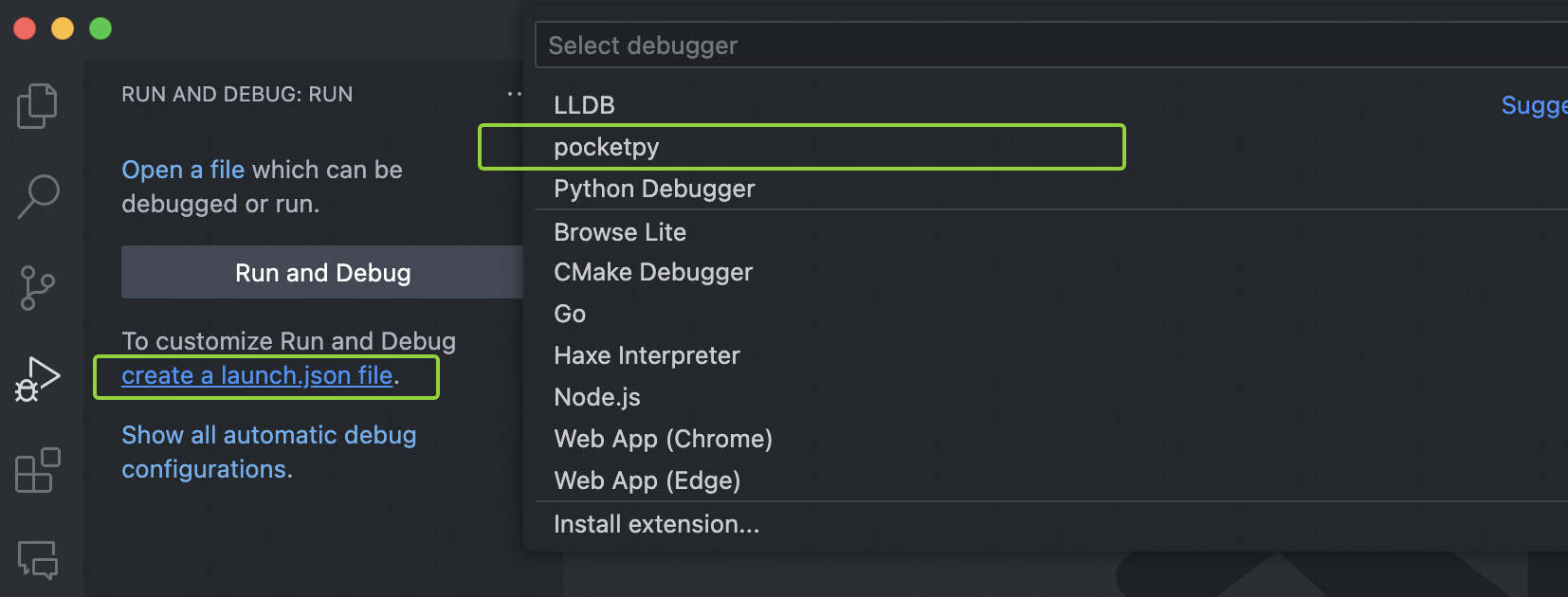

Navigate to the Debug view in VSCode, and click on "create a launch.json file" link. In the dropdown menu, select "pocketpy".

Then a default launch.json file will be created in the .vscode folder with a sample pocketpy debug configuration.

How does it work?

pocketpy provides a C-API py_debugger_waitforattach, which starts a debug server and waits for the VSCode extension to attach. When the debugger is attached, the program will continue to run.

• If you are using pocketpy's standalone executable main.exe, you can pass --debug flag to it. This will automatically call py_debugger_waitforattach("127.0.0.1", 6110) before running your program.
• If you are embedding pocketpy as a library, you need to call py_debugger_waitforattach manually in your C/C++ code.

Configuration

• type: must be pocketpy
• request: can be attach or launch
• name: the name of this configuration
• port: the port number of the debug server, must match the one in py_debugger_waitforattach
• host: the host of the debug server, must match the one in py_debugger_waitforattach
• sourceFolder: the root folder of your python source code, default to ${workspaceFolder}. However, sometimes you may run your program from a subfolder, in this case you need to set sourceFolder to the correct path. If this is not set correctly, breakpoints will not be hit.
• program: (for launch mode only) the path to the executable file which calls py_debugger_waitforattach, e.g. the pocketpy standalone executable main.exe.
• args: (for launch mode only) the arguments to pass to the executable file, e.g. --debug and the script path if you are using main.exe.
• cwd: (for launch mode only) the working directory to launch the executable file, default to ${workspaceFolder}.

For attach mode

In this mode, you need to start your pocketpy program manually which must call py_debugger_waitforattach first. After the program starts, you can let VSCode attach to the debug server.

{
    "type": "pocketpy",
    "request": "attach",
    "name": "Attach to pocketpy program",
    "port": 6110,
    "host": "localhost",
    "sourceFolder": "${workspaceFolder}"
}

For launch mode

In this mode, VSCode will start your program with the specified program, args and cwd. After the program starts, VSCode attempts to attach to the debug server automatically.

{
    "type": "pocketpy",
    "request": "launch",
    "name": "Launch pocketpy program",
    "port": 6110,
    "host": "localhost",
    "sourceFolder": "${workspaceFolder}",
    "program": "${workspaceFolder}/pocketpy/main.exe",
    "args": [
        "--debug"
    ],
    "cwd": "${workspaceFolder}"
}

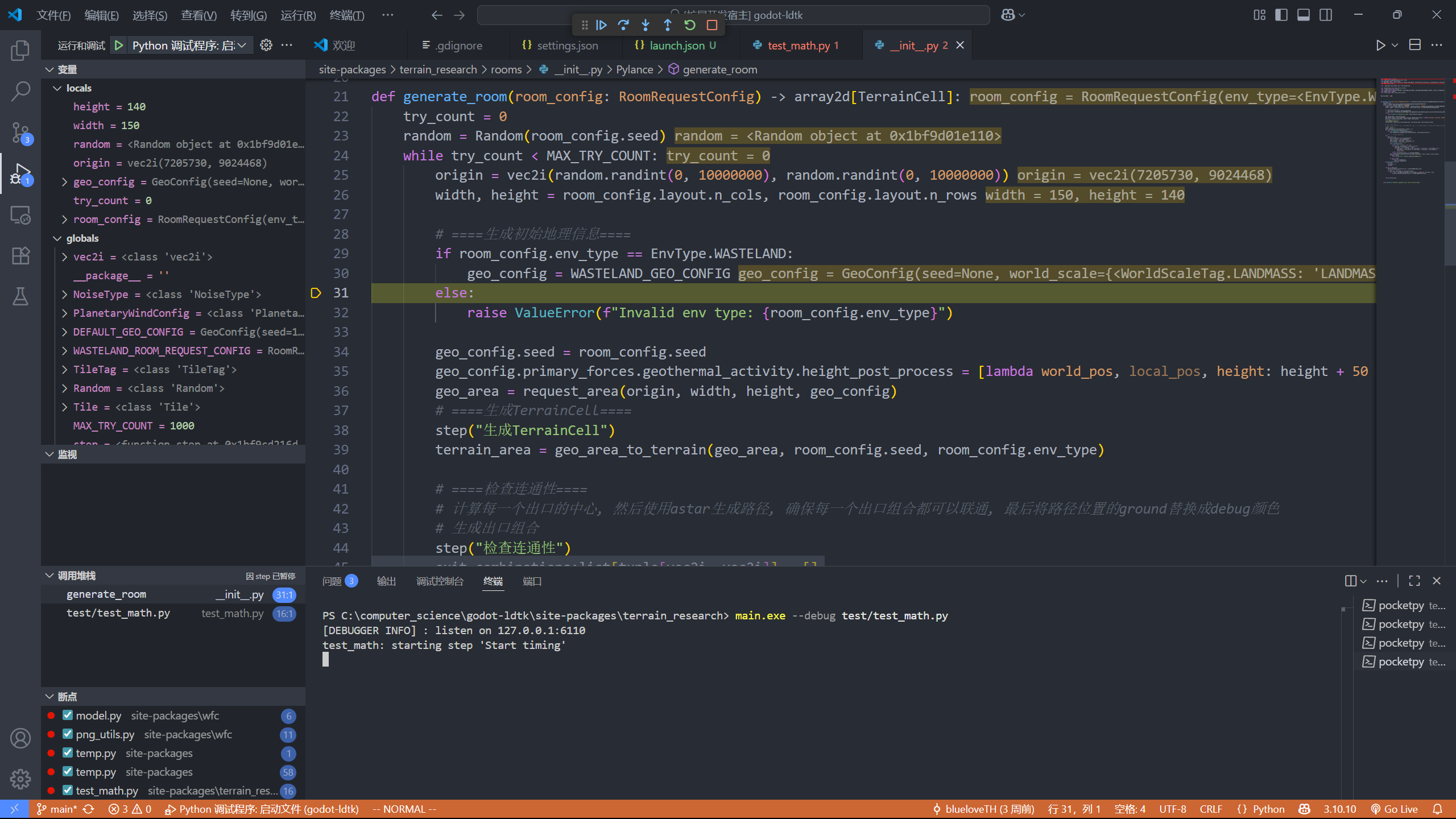

Showcase
